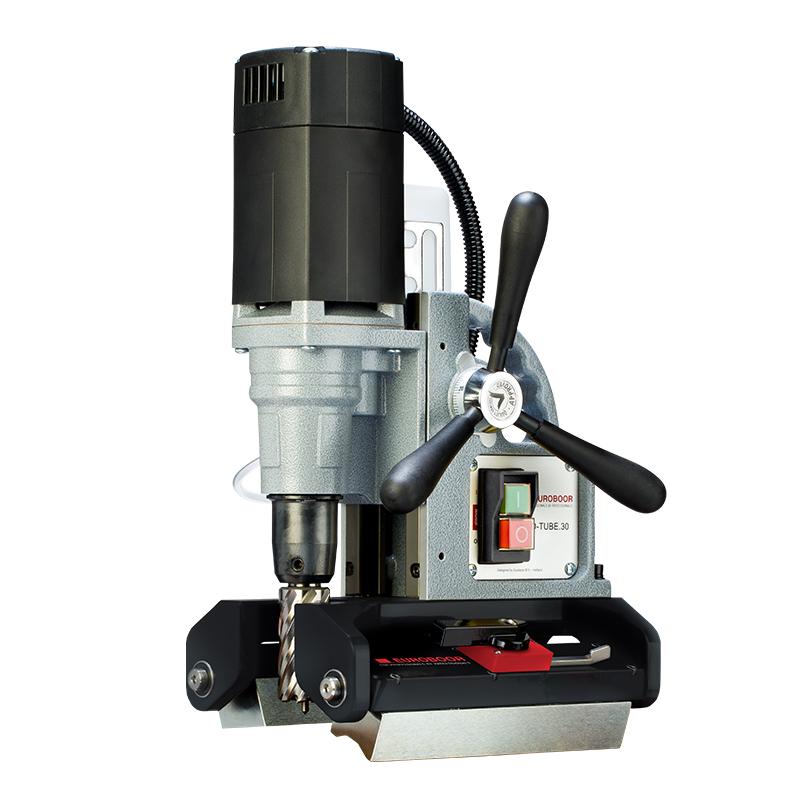

Magnetic Base Pipe Drilling Machine.
Drilling Application, up to 30mm
The TUBE.30 with patented shallow-field magnetic technology that offers incredibly strong grip, even on steel as thin as 3 mm.
The patent-pending base automatically pivots to conform to any pipe Ø 75 mm or larger.
The magnets do not require electricity, so all the power goes to the motor.
This also offers increased safety as the tool will not release from the target material in the event of an unintentional power loss, with its 900W power the TUBE.30 cuts holes between Ø 12 and 30 mm easily and quickly.
- High precision slide & rail construction
- Integrated oil bath gearbox
- Morse Taper 3 spindle
- External access to carbon brushes
- Digital read – out
- Smart restart
- Annular Cutters: 12 – 30mm Dia (mild steel)
- Twist Drills: 1 – 13mm Dia
- Stroke: 90mm
- Weight: 11kg
- Magnetic Force: 5320kg
- Power: 900W
- Speed (no load): 775min-1
- Speed (load): 400min-1
- Spindle: MT3 19.05mm Weldon
- Voltage: 220 – 240V / 50 – 60Hz
